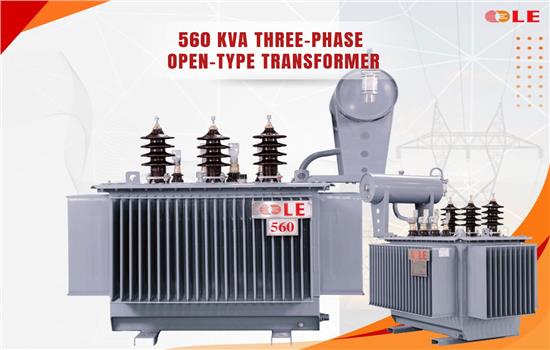

560 kva three-phase open-type transformer

The 560 kVA Three-Phase Open-Type Transformer is a medium-to-large capacity transformer widely used in manufacturing plants, industrial parks, internal substations, infrastructure projects, and facilities requiring a stable and continuous power supply. With reliable power transmission, low energy losses, and outstanding operational stability, the product is designed to meet the demanding technical requirements of modern power distribution systems.

560 kva three-phase open-type transformer

1. Technical Specifications of the 560 kVA Three-Phase Open-Type Transformer

Thanks to its optimized loss parameters, this transformer helps reduce operating costs throughout its service life, making it an ideal solution for facilities operating continuously 24/7.

2. Key Advantages of the LE 560 kVA Three-Phase Open-Type Transformer

Open-Type Design for Superior Cooling Performance

Unlike sealed-type transformers, the 560 kVA Open-Type Transformer features exposed cooling fins that enhance heat dissipation, especially under heavy loads and demanding environmental conditions. This design minimizes overheating risks, ensures stable operation, and extends equipment lifespan.

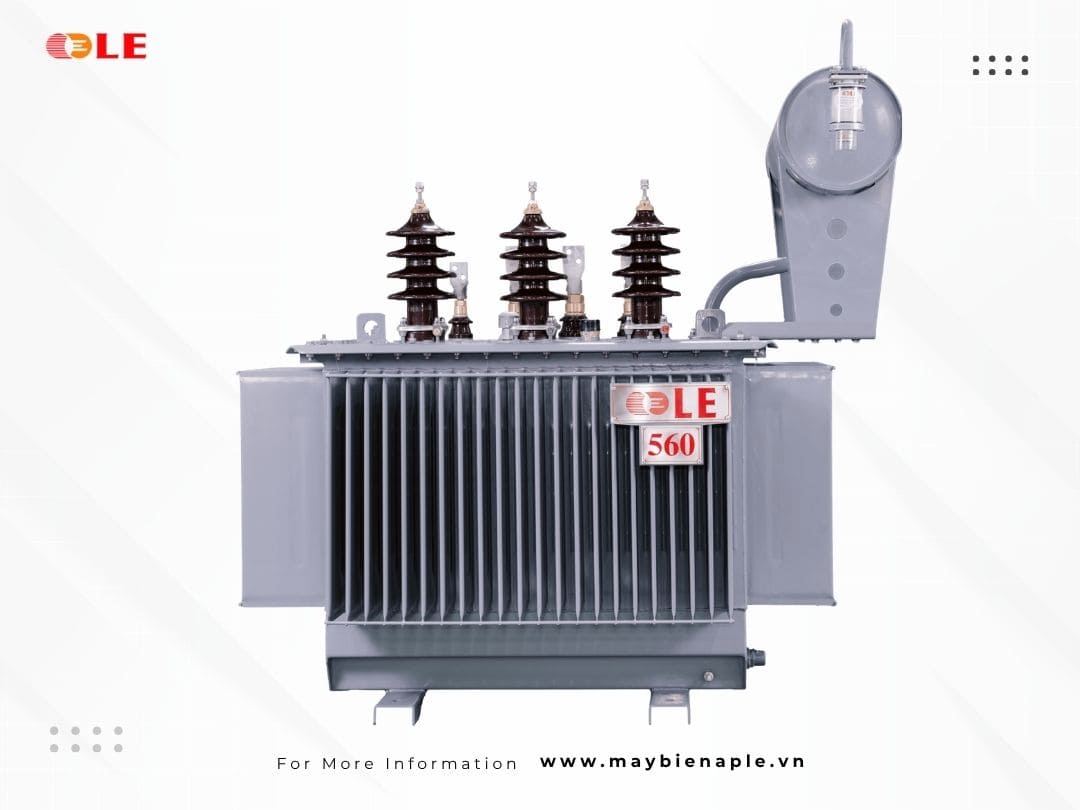

Open-Type Design for Superior Cooling Performance

Suitable Capacity for Various Applications

The 560 kVA rating is ideal for:

• Medium and large manufacturing plants
• Internal power distribution substations
• Industrial zones and industrial clusters
• Commercial centers, hospitals, and educational institutions
• Infrastructure and energy projects

Low Losses for Improved Energy Efficiency

Designed in accordance with EVN and Vietnamese technical standards, LE transformers offer optimized no-load and load losses, helping businesses significantly reduce long-term electricity costs.

3. Comparison with Other Transformer Types

Compared with Single-Phase Transformers

Single-phase transformers are typically used for residential and light-load applications. In contrast, the 560 kVA Three-Phase Open-Type Transformer delivers substantially higher power capacity, making it suitable for industrial and commercial power systems.

Compared with Sealed-Type Transformers

Sealed-type transformers offer a more compact appearance and better protection against external environmental factors. However, open-type transformers provide superior cooling efficiency, making them particularly suitable for locations with high ambient temperatures or fluctuating load demands.

Silicon Steel Core vs. Amorphous Core

LE Transformer manufactures both core technologies:

• Silicon Steel Core Transformers: Comply with Loss Standard 96, offering a cost-effective investment solution.
• Amorphous Core Transformers: Comply with Loss Standard 107, significantly reducing no-load losses and maximizing energy savings throughout operation.

Customers can select the most suitable solution based on their investment objectives and energy efficiency requirements.

4. Flexible Configurations to Meet Project Requirements

LE Transformer offers extensive customization options, including:

• Single-phase or three-phase transformers
• Sealed-type or open-type construction
• Porcelain bushings or T-Plug In bushings
• Electrostatic powder-coated or hot-dip galvanized enclosures
• Customized voltage ratings according to grid and project specifications

These flexible configurations allow LE transformers to perform effectively under various climatic, geographical, and operational conditions.

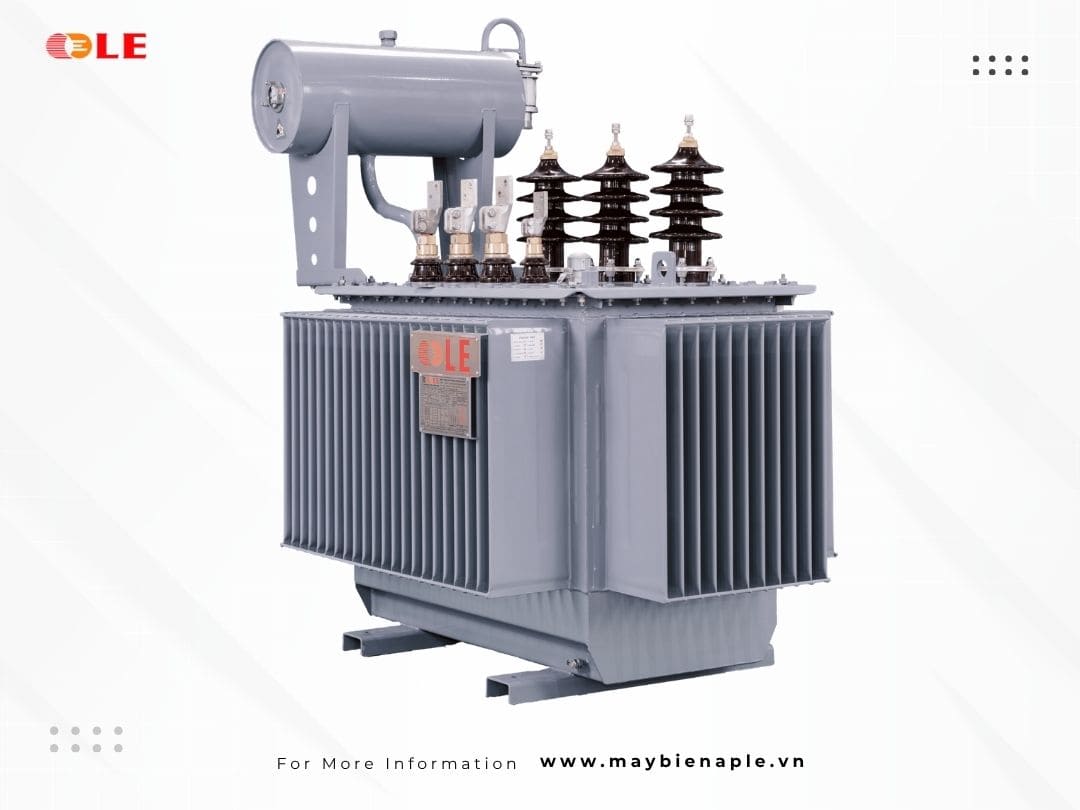

Flexible Configurations to Meet Project Requirements

5. LE Transformer Manufacturing Excellence

The quality of the 560 kVA Three-Phase Open-Type Transformer is backed by modern manufacturing facilities, strict quality control processes, and a highly experienced engineering team.

LE has invested in:

• High-precision CNC core cutting systems
• Automated coil winding machines
• Advanced vacuum drying and insulation treatment equipment
• Comprehensive testing systems in compliance with industry standards
• Strictly controlled raw materials, including transformer cores, conductors, insulating oil, and insulation materials

Every transformer undergoes rigorous testing and inspection before delivery to ensure safety, durability, and long-term performance.

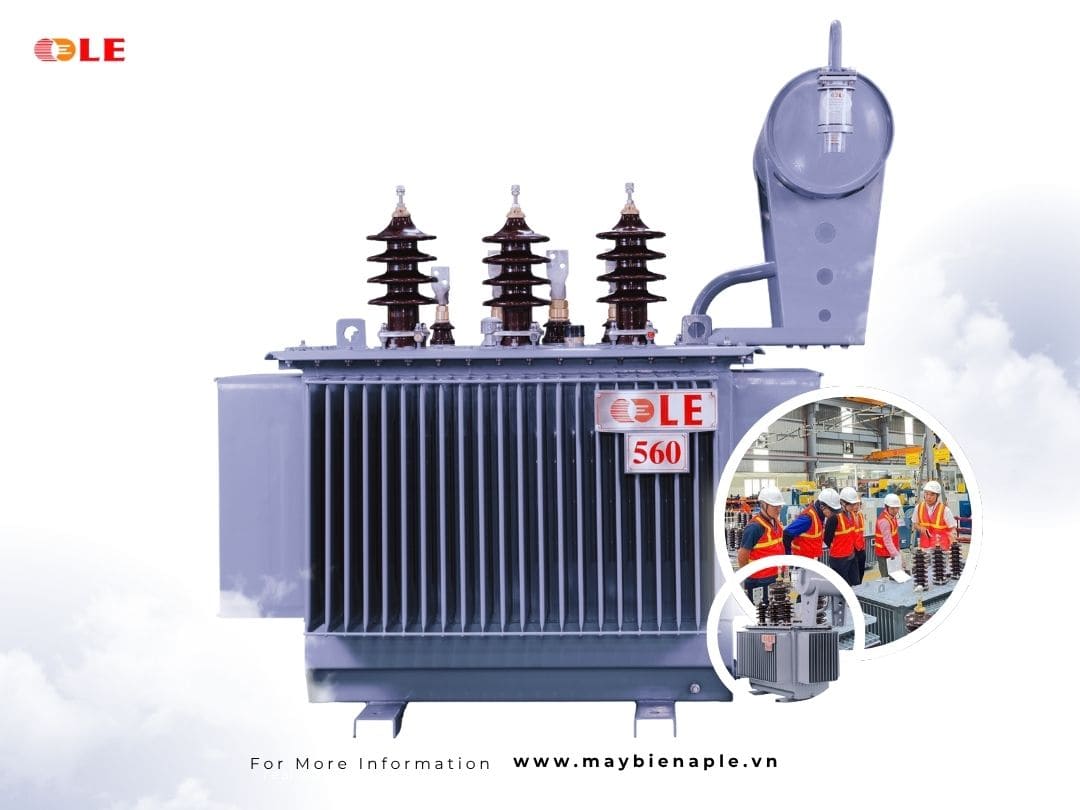

State-of-the-art production line

With high efficiency, low losses, reliable operation, and flexible configuration options, the LE 560 kVA Three-Phase Open-Type Transformer is an ideal solution for industrial facilities and modern power distribution systems. The product not only complies with current technical standards but also delivers long-term economic benefits, helping businesses optimize energy usage and reduce operational costs.
