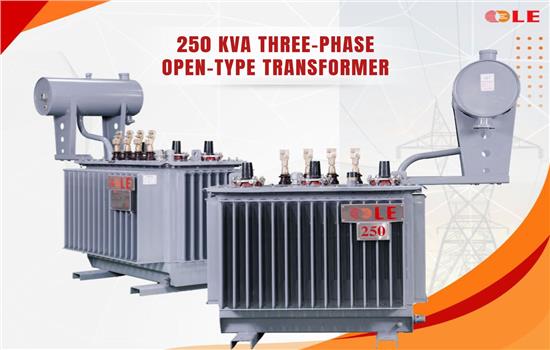

250 kva three-phase open-type transformer

As industrial production continues to expand, selecting the right electrical equipment is crucial - not only to optimize costs but also to ensure long-term operational stability. The 250 kVA three-phase open-type transformer by LE Transformer is an ideal solution for businesses seeking efficiency, durability, and ease of maintenance.

LE 250 kVA Industrial Transformer

TECHNICAL SPECIFICATIONS - 250 KVA THREE-PHASE OPEN-TYPE TRANSFORMER

Designed and manufactured to high technical standards, this transformer is built for continuous operation in demanding industrial environments:

• Rated Power: 250 kVA
• Vector Group: D/yo - 11
• No-load Current (Io): < 2%
• No-load Loss (Po): 340 W
• Short-circuit Loss (Pk, 75°C): 2600 W
• Short-circuit Voltage (Uk): > 4%

These parameters demonstrate excellent operational stability, reduced energy losses, and optimized long-term operating costs.

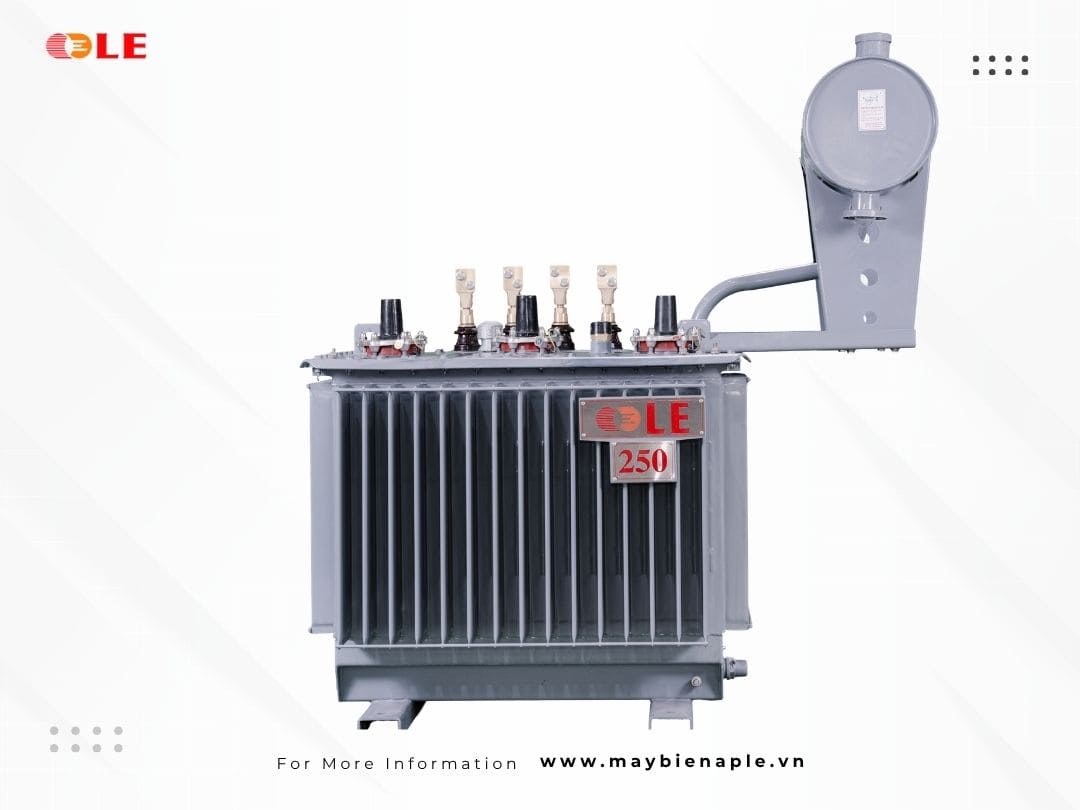

LE 250 kVA Three-Phase Transformer

KEY ADVANTAGES OF THE 250 KVA THREE-PHASE OPEN-TYPE TRANSFORMER

1. High Efficiency - Reduced Operating Costs

With low no-load losses and an optimized design, the transformer significantly lowers monthly electricity expenses for businesses.

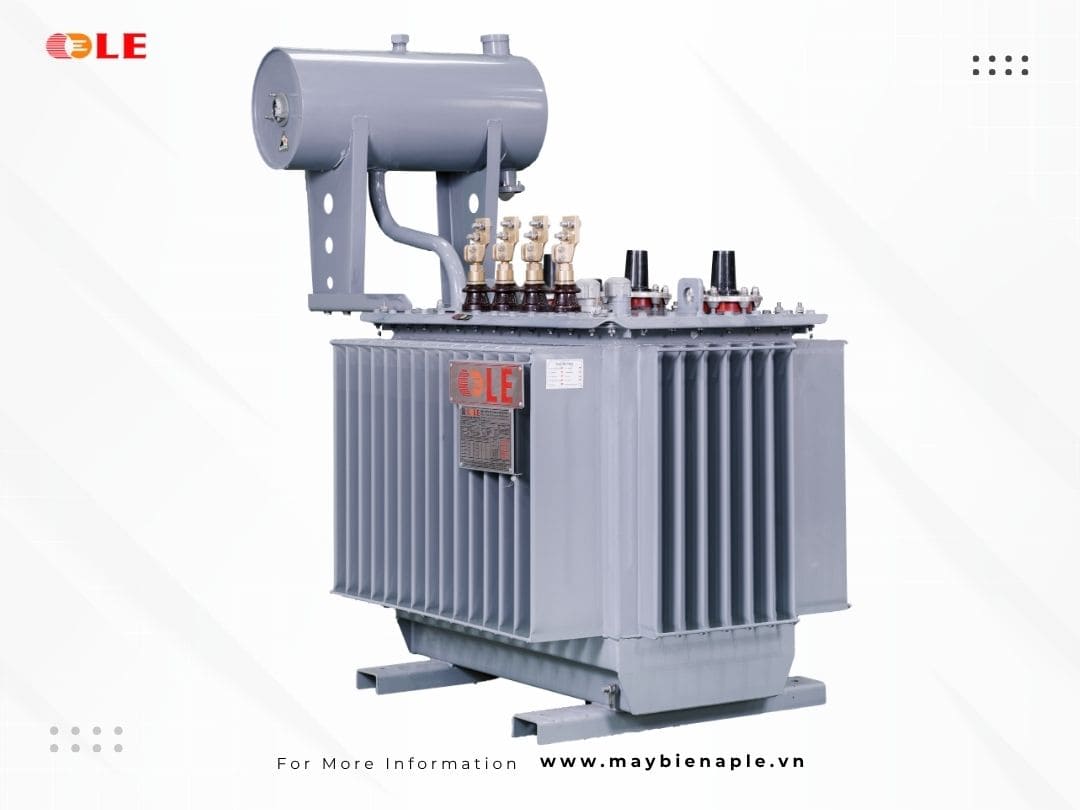

250 kVA Transformer for Stable Power Supply

2. Open-Type Design - Easy Inspection & Maintenance

Unlike sealed transformers, the open-type design allows technicians to easily monitor, inspect, and quickly troubleshoot when necessary.

3. High Durability - Reliable Long-Term Operation

Manufactured using high-quality materials, including low-loss silicon steel cores and pure copper windings, ensuring long service life and stable performance in industrial environments.

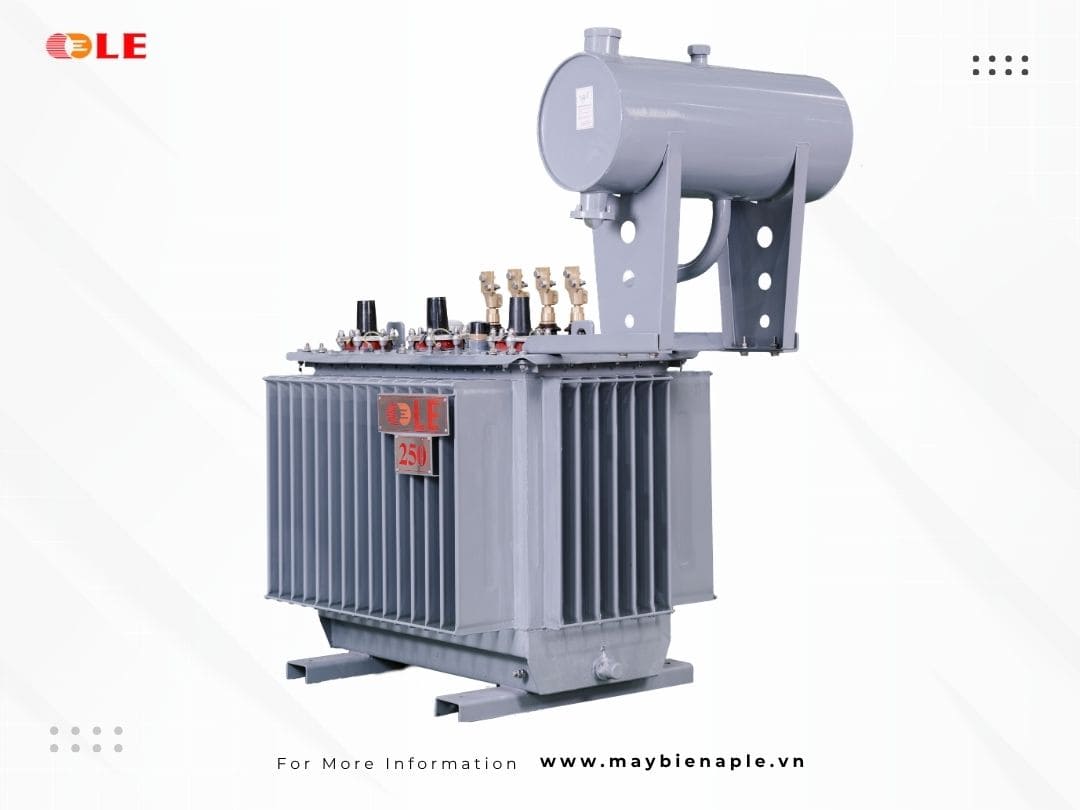

250 kVA Open-Type Transformer by LE

4. Suitable for Diverse Industrial Applications

The 250 kVA capacity is ideal for medium to large-scale factories where multiple machines operate simultaneously and require a stable power supply.

COMPARISON WITH OTHER TRANSFORMER TYPES

Compared to Oil-Immersed Transformers

• Oil transformers are suitable for outdoor installation with effective cooling performance.
• However, the 250 kVA open-type transformer offers clear advantages for indoor use: No risk of oil leakage, easier maintenance, lower operating costs in many cases.

Compared to Dry-Type Transformers

• Dry-type transformers provide high safety and excellent fire resistance.
• However, they typically come with higher initial investment costs.
• LE’s open-type transformer delivers an optimal balance between performance - cost - durability.

Compared to Lower Capacities (100-160 kVA)

• Easily overloaded as production expands
• Insufficient for high-power equipment
• In contrast, the 250 kVA model provides better capacity margin and supports long-term growth

APPLICATIONS OF THE 250 KVA THREE-PHASE OPEN-TYPE TRANSFORMER

This product is widely used in:

• Medium to large-scale manufacturing plants
• Industrial zone enterprises
• Internal factory power distribution systems
• Mechanical workshops, processing plants, and continuous production facilities

It is especially well-suited for industrial zones with medium to high load demands, where stable power supply and cost efficiency are essential.

WHY CHOOSE LE TRANSFORMER?

LE Transformer delivers not just products, but comprehensive electrical solutions backed by strong advantages:

1. Advanced Manufacturing Technology

State-of-the-art processes in core cutting, coil winding, and assembly ensure high precision and consistent quality.

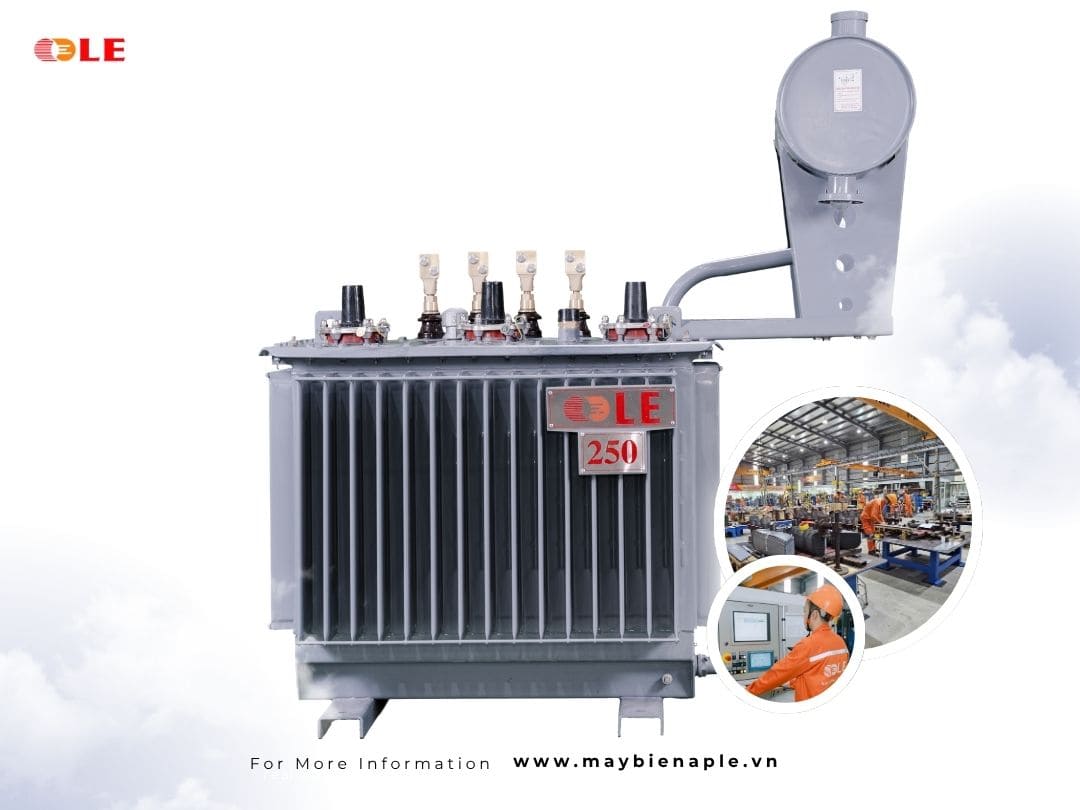

250 kVA transformer manufactured at LE factory

2. Premium Materials

• Low-loss silicon steel core
• High-purity copper windings
• Standard-compliant insulation materials

3. Strict Quality Control

Each unit undergoes thorough testing before delivery, ensuring safety, reliability, and optimal performance.

4. Experienced Engineering Team

Ready to provide tailored solutions based on each customer’s actual operational requirements.

The 250 kVA three-phase open-type transformer is the optimal choice for businesses seeking a stable - cost efficient - easy to maintain power solution. By choosing LE Transformer, customers gain not only a high-quality product but also long-term support from a trusted brand.

If you are looking for an efficient power solution for your factory, this is a smart investment you can make today.
